How Much Do You Know About Installation Measures of Belt Conveyor

How Much Do You Know About Installation Measures of Belt Conveyor

1.When users pave belt, it’s better to pave according to the middle line of belt strictly.Cleaning device should meet the specification, and blanking plate of head as well as guardrail of tail should be reliable.

2.When users transport components of belt conveyor, it’s better to deliver them in order of tail, middle frame, head and belt. After arriving at the designated location, those components should be displayed as per the transportation order.

3.When users install the belt conveyor, it’s better to do it according to the order of head frame, middle frame, tail and belt.Center line of each pulley and belt conveyor should be in a same line.

4.After installing all protective devices of belt conveyor,such as velocity protection, temperature protection, deflection protection and so on, users had better do commissioning for those protective devices and hang protection signboard.

5.There should be equipped 2 fire extinguishers and emergency sand box which is not less than 0.2 m³ on both head and tail of belt conveyor.

6.The installation of cleaning device should meet the production’s requirements. It should have a good connection to the conveyor belt surface. Also, there should be installed one cleaning device on both side of head and tail.

7.If all parts of belt conveyor have been installed totally, it’s better to do commissioning.

Better Understanding on Installation Direction of Steel Wirerope in Portable Belt Conveyor

Better Understanding on Installation Direction of Steel Wirerope in Portable Belt Conveyor

Due to the wheels and lifting device, portable belt conveyor can move freely and be adjusted lifting height. So it has high efficiency when conveying things and can be widely used in port, warehouse, station, coal field and other places.

According to different requirements, portable belt conveyor be customized in different belt width and length. But because of its large volume, it need to be disassembled during transportation and installed by customer when they receive the machine. Therefore, it is very important to know how to install steel wirerope and belt. Appropriate installation direction of steel wirerope and belt will directly affect the lifting and operation capacity of portable belt conveyor. With the purpose of showing the installation direction better, our engineers provide the following drawing for your reference，hope users can have a better understanding.

Introduction of Tripper

Introduction of Tripper

► Brief IntroductionBelt conveyor tripper is a mobile device which can unload materials at the arbitrary point of horizontal section of the conveyor; it’s a single part of the conveyor. Movable tripper can be divided into light-duty type and heavy-duty type.



► Features
    1.Durable
    2.High efficiency
    3.Simple structure
    4.Stable operation
    5.Easy to maintenance
    6.Multiple discharging points
    7.Moving freely with wheels

► Advantage

    1.Heavy duty structural frames and supports – to provide system rigidity

    2.Heavy duty inlet skirting – to eliminate spillage at discharge transition

    3.Abrasion resistant belting – to reduce wear and increase life span

    4.Heavy duty idlers with anti-friction bearings – to increase idler life and reduce horsepower requirements

    5.High torque drive units – to power through upset conditions

    6.Modular design shipped with limited field assembly required for drop in, bolt in place field installation

    7.May be fitted to any new or existing conveyor

    8.Single and dual side discharge designs

    9.Evenly distribution of materials

    10.Save storage space

    11.Powered tripper movement through cable/winch assembly or powered wheels, crowned bend pulleys for positive belt tracking

    12.Shuttling cross conveyor belt design available with side to side movement

    13.Cross over platform/operator deck available on cross conveyor tripper

    14.Engineered to meet new project requirements and also to retrofit existing conveyors



►  Application
XLP Tripper is always used at a large belt conveyor, it applies in the occasion where the belt conveyor has a discharge requirement, such as mining, power plant, steel plant, port, etc.

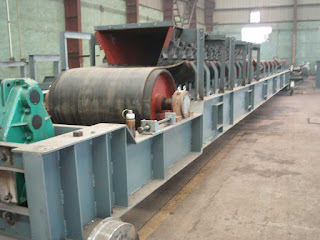

Introduce Shuttle Conveyor

Introduce Shuttle Conveyor

► Brief Introduction
Shuttle conveyor is designed for conveying material moves along a transport direction on the steel track which is usually installed on the top of the storehouse.Reversible conveyor mainly used to discharge material constantly in multi-point when the discharging points could move.



► Advantages

    1.Multiple discharge point

    2.Discharge continuously in long distance

    3.Two way running and discharging

    4.Compact structure with low height

    5.Convenient installation and maintenance



► Application
Large capacity shuttle conveyor is mainly used for disperse and store the material, especially the materials need to discharge averagely in order to take full advantage of the space and then store more material. So it could be used in agriculture, power plant, raw material stocking, metallurgy industry, etc.
